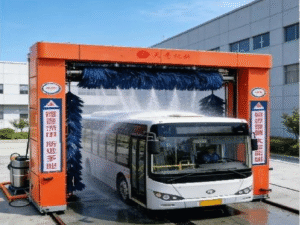

The reciprocating custom fully automatic car wash machine is an integrated reciprocating car wash machine designed specially for buses, sanitation vehicles and engineering vehicles. The whole process is controlled by a computer (PLC) as the control centre, which automatically recognises the exterior shape of the body and so controls the distance between the nozzle and the body — without damaging the vehicle — for all-round cleaning of the body surface with no blind spots. It is widely used at sanitation stations, public transport systems and passenger transport depots across the country.
| Item | Specification |
| Model | TY-1000 |
| Wash size (L×W×H) | 20m × 3m × 4m |
| Installation dimensions (L×W×H) | 26m × 5.5m × 4.5m |
| Machine dimensions (L×W×H) | 5.5m × 2.1m × 2m |
| Total installed power | 37kW |
| Voltage | 380V / 50Hz |
| Washing method | High-pressure water + brushing |
| Number of brushes | 1 top brush + 2 side brushes |
| Average water consumption | approx. 200 L/vehicle (two passes) |
| Wash time | approx. 10-15 min/vehicle |
| Compressed air pressure | 0.8MPa |
| Power consumption | approx. 1.2 kWh/vehicle |
| Control system | PLC with VFD |
| Material & finish | Carbon steel, hot-dip galvanized, powder-coated or baked paint |
Main functions: automatic sensing spray system, automatic siphon foam system, automatic current control system, automatic detection and alarm system, automatic vehicle-type recognition, emergency stop protection, modular action control, remote control, winter anti-freeze technology, and an intelligent on-site management system.
