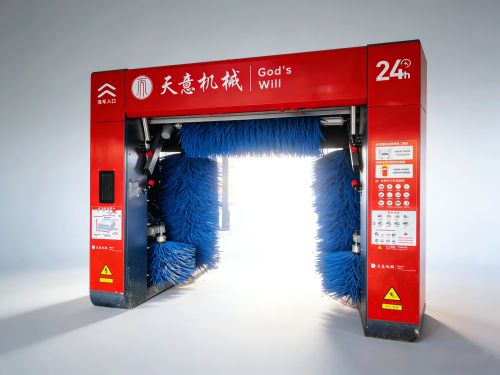

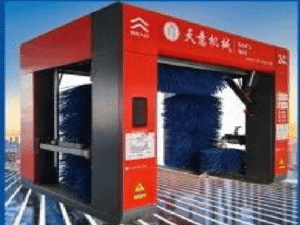

The fully automatic reciprocating car wash machine is an intelligent car wash machine that can operate unattended. It can be fitted with an unattended module to clean, wax and polish, and air-dry the exterior of sedans, SUVs and business vehicles. Highly automated, easy to operate, fully featured, energy-saving and environmentally friendly, it is well liked by customers at home and abroad.
| Item | Specification |
| Model | TY-500-5 |
| Machine dimensions | 2.3m × 3.8m × 3m |
| Site dimensions | 10m × 4m × 3.1m |
| Vehicle dimensions | 5.2m × 2m × 2m |
| Voltage | 380V |
| Roller brush system | 5 brushes |
| Control system | PLC |
| Total power | 16kW |
| Water pump motor | Renmin pump |
| Brush material | EVA foam |
| Air-dryer system | 4 × 3kW |
| Power consumption | 0.5-0.6 kWh/vehicle |
| Water consumption | 80-100 L/vehicle |
| Infrared photoelectric sensor | Banner (USA) |
Main functions: automatic sensing spray, automatic shampoo spraying, automatic wheel-hub cleaning (optional), automatic profile-following brush washing of the body, automatic undercarriage rinsing, automatic water-wax polishing, automatic blow-drying, towel drying (optional), automatic detection, optional sewage treatment system, and an environmentally friendly, water-saving design.
